Advanced Tabs

This document provides a reference guide defining all the configuration options, layout settings, and design controls available in the WordPress Block Editor.

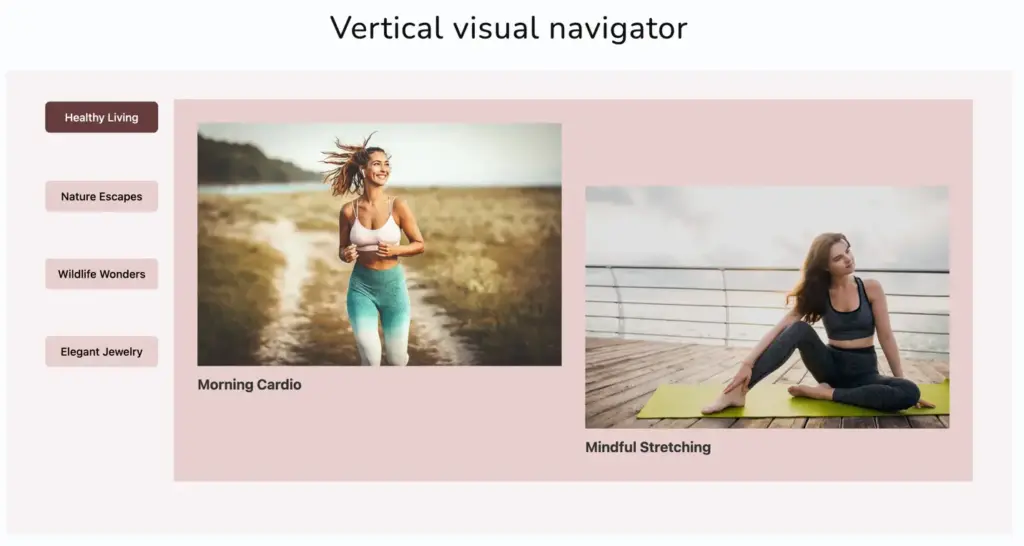

See Block in Action

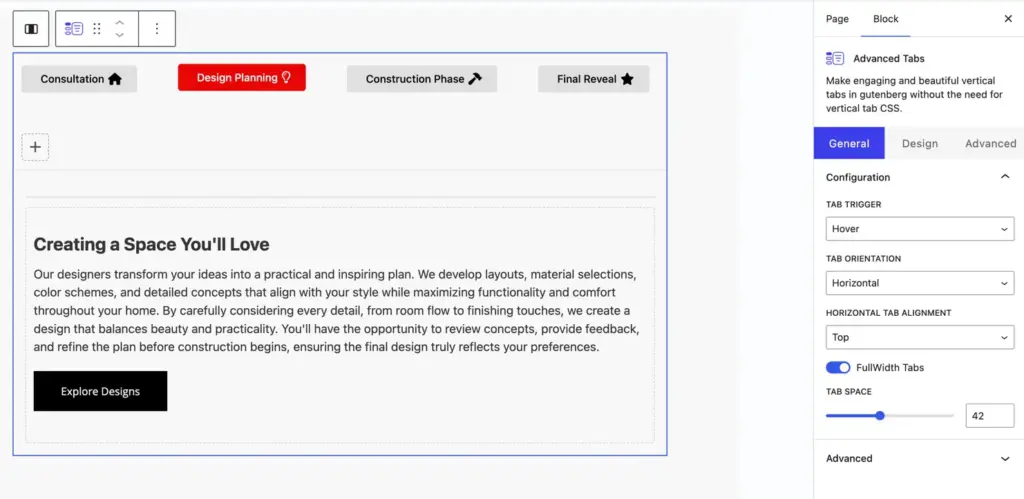

Configuration

  • Tab Trigger: Select whether tabs switch on mouse Hover or Click.
  • Tab Orientation: Choose the layout direction for tab headers—Horizontal (row) or Vertical (column).
  • Horizontal Tab Alignment: (Horizontal Mode) Set the tab buttons position to Top or Bottom relative to the tab content.
  • FullWidth Tabs: Enable this toggle to stretch tab buttons equally across the total container width.
  • Tab Space: Adjust the spacing/gap between individual tab buttons in pixels using the slider.

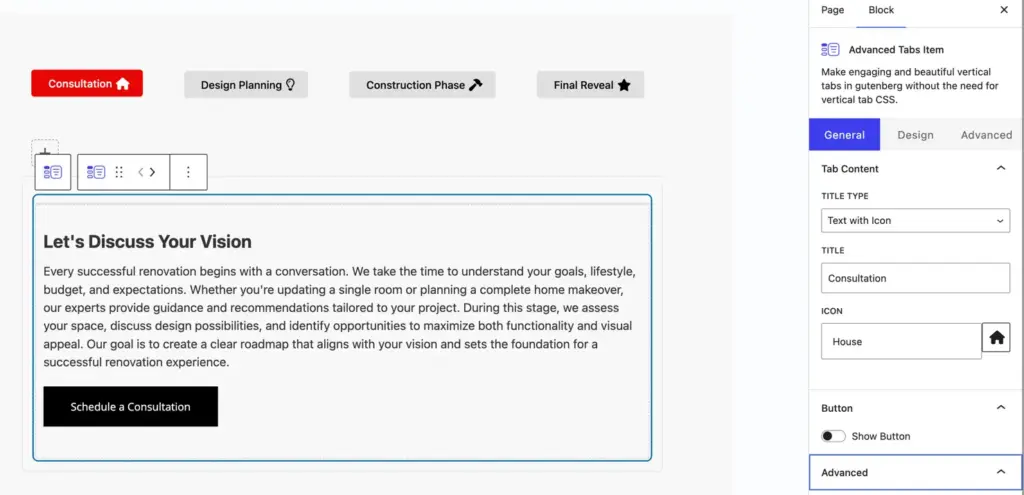

Advanced tabs item

Tab content

  • Title Type: Choose how the tab header title is displayed. Available options include:
    • Text: Displays title text only.
    • Text with Icon: Displays title text along with an icon.
    • Text with Image: Displays title text along with a custom uploaded image.
    • Icon: Displays an icon only without any text.
    • Image: Displays a custom image only without any text.
  • Title: Enter the header label/heading text for this individual tab item (e.g., Consultation).
  • Icon: (Available when Title Type includes Icon) Select an icon from the icon library to display in the tab header.

Button

  • Show Button: Enable or disable a Call-to-Action (CTA) button inside this specific tab content area. When enabled, additional button configuration settings appear:
    • Button Text: Input the custom text label for the button.
    • Button URL: Enter the target link URL for the button.
    • Open in New Tab: Toggle to open the button link in a new browser tab.

Advanced

  • Additional CSS Class(es): Add custom CSS class names to apply custom styling to this individual tab item via CSS.

Single item design setting

Icon/Image

  • Icon Color: Set the default color for the tab icon in its normal (inactive) state.
  • Active Tab Icon Color: Set the icon color for the tab when it is currently active or selected.
  • Icon Font Size: Adjust the size of the tab icon in pixels using the slider or input box (e.g., 16px).
  • Image Size: Adjust the width and size of the custom uploaded tab image in pixels using the slider or input box (e.g., 32px).

Button (Design and Styling)

  • Button Alignment: Align the Call-to-Action (CTA) button to the Left, Center, or Right within the tab content body.
  • Use Custom Styles for Button: Toggle to enable advanced custom styling options for the button:
    • Text Color and Background Color: Customize the button font color and background color for both Normal and Hover states.
    • Typography: Full control over font size, font family, font weight, line height, and letter spacing.
    • Button Border and Border Radius: Adjust border style, width, color, and rounded corners for the button.
    • Button Padding: Customize inner spacing (Top, Right, Bottom, Left) around the button text.
    • Use Icon on Button: Toggle to add an icon inside the button. Configure icon selection, icon position (Before or After text), icon color, and whether to show the icon only on hover.

Container

  • Container Background: Set a custom background color or gradient fill for the tab content container body.
  • Padding: Adjust the internal padding (spacing) inside the tab content box (Top, Right, Bottom, Left).
  • Margin: Adjust external margins (spacing) around the tab content box.
  • Border: Choose border style (Solid, Dashed, Dotted, None), border width, and border color for the tab content container.
  • Border Radius: Set rounded corners for the tab content box in pixels.
  • Box Shadow: Apply custom drop-shadow effects around the tab content container box.
